15° Viewing Angle PMMA COB Lens with 93% Efficiency for Indoor Lighting

Brand Name : Wisertop

Model Number : WT-25@10-15COBL3-Y1

Certification : Rohs

Place of Origin : China

MOQ : 1pc

Price : Shenzhen Wisertop Technology Co.,Ltd

Supply Ability : 100,000 day

Delivery Time : 1-2 weeks

Packaging Details : Master carton

Material : PMMA

Lens type : TIR Lens

Efficiency : 93%

Certificates : Rohs

Working temperature : -40°C~+70°C

Light source : Brand COB leds as Cree Osram Lumileds Bridgelux...

Contact Now

Accurate Viewing Angle 15° Lens - PMMA Material for Indoor Lighting COB Lens Diameter 25mm
Applications
  • Spot light
  • Down light
  • Tracking light
  • Recessed lamp
  • Ceiling light
Lens Material

PMMA (all available)

Lens Features
  • High K value
  • Accurate viewing angle - illuminated object is clear and recognizable
  • High light transmittance
  • Maintains high color resistance
  • Main light halo fades naturally
  • Low glare and good shape light area
Compatible COB Light Sources

Cree, Lumileds, Bridgelux, Citizen, and more

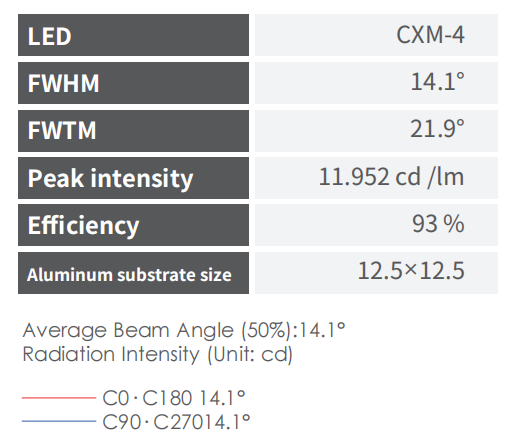

Specifications
Part No Light-emitting Surface FWHM Size (mm) Typ. Eff Material
WT-25@12-15COBL4-Y1 ¢3mm COB 15° φ24.8×12.5 0.93 PMMA
WT-25@12-24COBL4-Y1 ¢4mm COB 24° 0.93 PMMA
WT-25@12-36COBL4-Y1 ¢4mm COB 36° 0.93 PMMA
WT-25@12-15COBL4-Y2 ¢4mm COB 15° 0.88 PC
WT-25@12-24COBL4-Y2 ¢4mm COB 24° 0.88 PC
WT-25@12-36COBL4-Y2 ¢4mm COB 36° 0.88 PC
WT-25@12-50COBL4-Y2 ¢4mm COB 50° 0.88 PC
15° Viewing Angle PMMA COB Lens with 93% Efficiency for Indoor Lighting 15° Viewing Angle PMMA COB Lens with 93% Efficiency for Indoor Lighting
Frequently Asked Questions
1) Can I have a sample order?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
2) When can I get the quotation?
We usually provide an offer within 12 hours after receiving your inquiry. For faster response, please call or email us.
3) What is the lead time?
Samples require about 3-5 days for preparation. Mass production time typically needs 1-2 weeks.
4) What are your main products?
Our main products are indoor lenses.
