PMMA Material COB Lens with 15° Viewing Angle and 93% Efficiency for LED Spotlights

Brand Name : Wisertop

Model Number : WT-20@10-15COBL3-Y1

Certification : Rohs

Place of Origin : China

MOQ : 1pc

Price : Shenzhen Wisertop Technology Co.,Ltd

Supply Ability : 100,000 day

Delivery Time : 1-2 weeks

Packaging Details : Master carton

Material : PMMA

Lens type : TIR Lens

Efficiency : 93%

Certificates : Rohs

Working temperature : -40°C~+70°C

Light source : Brand COB leds as Cree Osram Lumileds Bridgelux...

Contact Now

PMMA Material Track Light COB Diameter 20mm Lens Viewing Angle 15° Lens
Product Overview

High-performance PMMA lens designed for track lighting applications with precise 15° viewing angle and excellent optical characteristics.

Applications

Spot light, Down light, Tracking light, Recessed lamp, Ceiling light

Lens Features
  • High K value for superior performance
  • Accurate viewing angle with clear, recognizable illumination
  • High light transmittance efficiency
  • Maintains high color resistance
  • Natural main light halo fade
  • Low glare with well-defined light area
Compatible Light Sources

Fits COB light sources from Cree, Lumileds, Bridgelux, Citizen, and other major manufacturers.

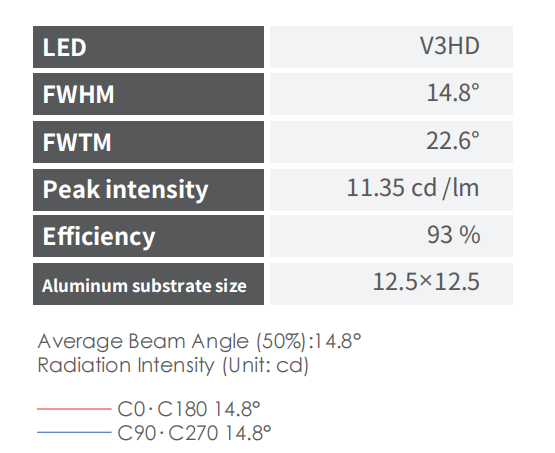

Technical Specifications
Part No Light-emitting Surface FWHM Size (mm) Typ. Eff Material
WT-20@10-15COBL3-Y1 ¢3mm COB 15° φ19.8×9.48 0.93 PMMA
WT-20@10-24COBL3-Y1 ¢3mm COB 24° - 0.93 PMMA
WT-20@10-36COBL3-Y1 ¢3mm COB 36° - 0.93 PMMA
WT-20@10-50COBL3-Y1 ¢3mm COB 50° - 0.93 PMMA
Product Images
PMMA Material COB Lens with 15° Viewing Angle and 93% Efficiency for LED Spotlights PMMA Material COB Lens with 15° Viewing Angle and 93% Efficiency for LED Spotlights
Frequently Asked Questions
Can I have a sample order?
Yes, we welcome sample orders to test and check quality. Mixed samples are acceptable.
When can I get the quotation?
We usually provide quotations within 12 hours after receiving your inquiry. For urgent requests, please call or email us.
What is the lead time?
Samples require about 3-5 days for preparation, while mass production typically takes 1-2 weeks.
What are your main products?
Our main products are indoor lenses for various lighting applications.
